Circle Counter

The Circle Counter module displays an animated circular progress bar with a percentage value and optional title.

Quick Reference

What it does: Displays an animated circular progress arc that fills from zero to a target percentage on scroll. When to use it: Skills/proficiency displays, project milestones, statistics dashboards, KPI visualizations Key settings: Title, Number (0-100), Percent Sign toggle, Circle color and track color Block identifier: divi/circle-counter ET Docs: Official documentation

When to Use This Module

• You need a visual circular gauge for percentage-based data
• Statistics dashboards showing completion rates, satisfaction scores, or growth metrics
• Grouped counters in multi-column rows for visual impact

When NOT to Use This Module

• You need horizontal progress bars → use Bar Counter
• You need an animated number without a circular visual → use Number Counter
• You need a countdown to a specific date → use Countdown Timer

Overview

The Circle Counter module presents numerical data as a filled arc within a circle, animating from zero to the target value when the element scrolls into view. It is commonly used to represent completion percentages, skill proficiency levels, project progress, and other metrics that benefit from a visual gauge rather than plain text.

Each circle counter consists of three visual components: the circular track (background ring), the progress arc (filled portion), and a centered number that counts up to the specified value. A title below the circle provides context for what the number represents. The animation triggers automatically via lazy-loading when the module enters the viewport, creating an engaging reveal effect.

Circle counters work best when grouped together. Place three or four in a multi-column row to create a statistics dashboard effect — for example, showing completion rates, satisfaction scores, or growth percentages side by side. The module adapts to its column width, so the circle scales proportionally in narrower containers.

For additional reference, see the official Elegant Themes documentation.

View A Live Demo Of This Module

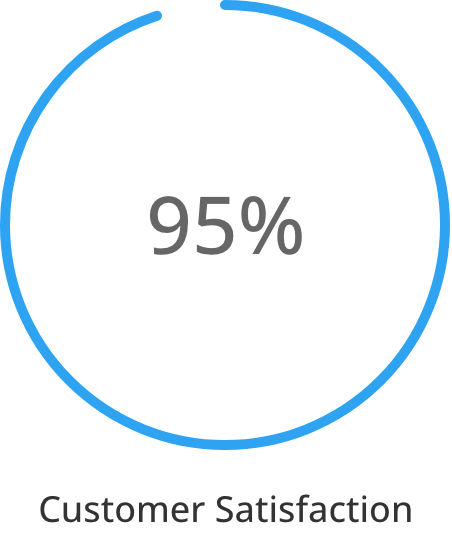

The Circle Counter module as it appears on the live demo.

Use Cases

1. Skills or Proficiency Display — Show skill levels on a portfolio or team member page with each circle representing a different competency and its mastery percentage.
2. Project Milestones — Visualize project progress on a status page or case study, with each circle counter tracking a different phase or deliverable.
3. Statistics Dashboard — Present key business metrics like customer satisfaction, revenue growth, or completion rates in a visually engaging row of animated counters.

How to Add the Circle Counter Module

1. Open the Visual Builder on the page you want to edit.
2. Click the gray + icon to add a new module to a row.
3. Search for "Circle Counter" in the module picker or find it in the Content Elements category, then click to insert it.

Settings & Options

The Circle Counter module settings are organized across three tabs: Content, Design, and Advanced.

Content Tab

The Content tab controls the counter's title, number value, display options, link behavior, background, and metadata.

Setting	Type	Description
Title	text	The label displayed below the circle, providing context for the number value (e.g., "Project Completion" or "Customer Satisfaction"). Supports dynamic content.
Number	number/text	The target percentage value the counter animates to. Enter a number between 0 and 100. This is the value displayed inside the circle.
Percent Sign	toggle	Controls whether a percent sign (%) is displayed after the number inside the circle. Disable this if the number represents a non-percentage metric.
Link	url/link settings	Optionally make the entire module clickable, linking to a page, section, or external URL. Includes target and relationship attribute controls.
Background	background controls	Set a background color, gradient, image, or video behind the circle counter module. Multiple background layers can be combined.
Loop	toggle	Enables the loop builder, allowing the circle counter to repeat dynamically based on a data source such as posts or custom queries.
Order	number	Controls the display order of this module when its parent row or column uses Flexbox or CSS Grid layout modes.
Meta	admin label	Set an admin label for the module to help identify it in the Visual Builder's layer panel. Also controls Visual Builder visibility.

Design Tab

The Design tab controls the circle's colors, text styling, module dimensions, and visual effects.

Module-specific settings:

Setting	Type	Description
Circle	circle styling	Configure the progress arc color, the background track color, and the overall opacity of the circle element. These settings define the primary visual identity of the counter.

Shared design options — see Options Groups for detailed documentation:

Options Group	Description
Text	Font, weight, alignment, color, line height, text shadow
Title Text	Font, size, color, letter spacing for the title below the circle
Number Text	Font, size, color, weight for the percentage number inside the circle
Sizing	Width, max-width, height, min-height
Spacing	Margin and padding (responsive)
Border	Width, color, style, radius
Box Shadow	Shadow effects
Filters	CSS filters (brightness, contrast, etc.)
Transform	Scale, translate, rotate, skew
Animation	Entrance animation styles

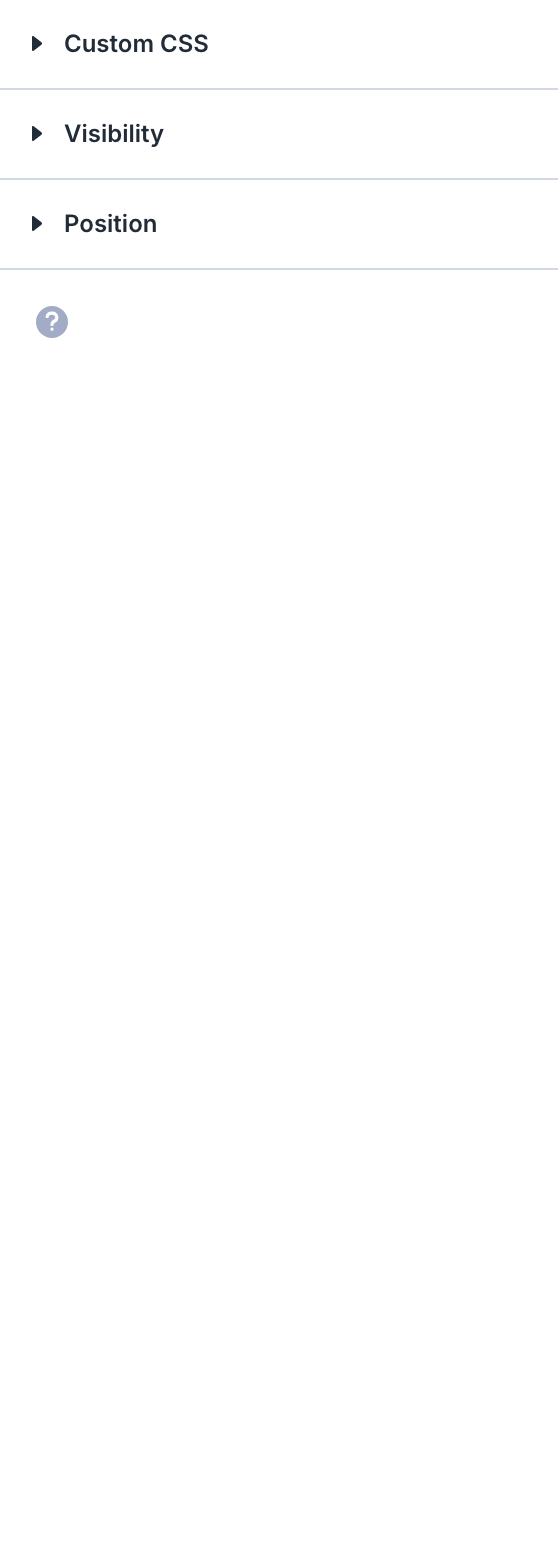

Advanced Tab

The Advanced tab provides developer-oriented controls for custom attributes, conditional display, interactions, and scroll-driven effects.

Shared advanced options — see Options Groups for detailed documentation:

Options Group	Description
Attributes	CSS ID, classes, custom HTML attributes
CSS	Custom CSS per element target
HTML	Custom HTML attributes for module wrapper
Conditions	Display rules (user role, page type, date, logic)
Interactions	Hover, click, or scroll-triggered interactions
Visibility	Device visibility toggles
Transitions	Hover transition timing
Position	CSS position and offsets
Scroll Effects	Scroll-driven animation effects

Code Examples

Custom CSS

/* Style the Circle Counter module container */
.et_pb_circle_counter {
    margin-bottom: 30px;
}

/* Customize the percentage number inside the circle */
.et_pb_circle_counter .percent p {
    font-weight: 700;
    font-size: 36px;
    color: #333333;
}

/* Style the title below the circle */
.et_pb_circle_counter h3 {
    font-size: 16px;
    text-transform: uppercase;
    letter-spacing: 1px;
    margin-top: 15px;
    color: #666666;
}

/* Add a hover effect to the circle */
.et_pb_circle_counter:hover {
    transform: scale(1.05);
    transition: transform 0.3s ease;
}

/* Responsive adjustments */
@media (max-width: 980px) {
    .et_pb_circle_counter {
        max-width: 200px;
        margin-left: auto;
        margin-right: auto;
    }
}

PHP Hooks

/* Filter the Circle Counter module output to add a wrapper class */
add_filter('et_module_shortcode_output', function($output, $render_slug) {
    if ('et_pb_circle_counter' !== $render_slug) {
        return $output;
    }
    // Wrap the module in an additional container for layout purposes
    $output = '<div class="custom-counter-wrapper">' . $output . '</div>';
    return $output;
}, 10, 2);

Common Patterns

1. Skills Row — Place three or four circle counters in a multi-column row on an about or team page. Assign each counter a different skill label (e.g., "HTML/CSS," "WordPress," "Design") with corresponding proficiency percentages. Use matching circle colors tied to your brand palette.

2. Project Status Dashboard — Create a statistics section with circle counters representing different project phases or KPIs. Use a dark background section with light circle colors for high contrast. Add entrance animations with staggered delays so each counter animates in sequence from left to right.

3. Before/After Metrics — Pair circle counters with text modules to present improvement metrics in a case study. For example, show "Before: 45%" and "After: 92%" side by side with descriptive text below each explaining the improvement. Use contrasting circle colors (muted for "before," vibrant for "after") to visually reinforce the change.

AI Interaction Notes

Create vs. Modify

Modifying existing module content via REST API (wp.apiFetch PATCH) updates title, body text, and settings attributes. Creating new modules via REST API produces content that renders on the front end but may not appear in the Visual Builder layer view. Use browser automation for reliable module creation. See REST API Content Playbook.

Block identifier: divi/circle-counter — Needs verification on current build

Operation	Method	Status	Notes
Read content	Parse post_content block JSON	Observed	Use brace-depth parser — see Content Encoding
Modify existing	wp.apiFetch PATCH on post endpoint	Observed	Update block attributes in post_content
Create new	Browser automation (Playwright)	Observed	REST creation may break VB visibility
Batch modify	Sequential REST requests	Needs Testing	See REST API Content Playbook

Key content attributes — JSON paths need verification:

Attribute	JSON Path	Notes
Title	attrs.title	Label displayed below the circle
Number	attrs.number	Target percentage value (0-100)
Percent Sign	attrs.percent_sign	Toggle for % symbol display

Module Selection Guidance

For circular progress displays use Circle Counter; for horizontal bars use Bar Counter; for plain animated numbers use Number Counter.

Saving Your Work

After configuring the circle counter:

• Save changes — Click the purple Save button at the bottom of the Visual Builder, or press Ctrl+S (Windows) / Cmd+S (Mac).
• Exit the builder — Click the X button or use Ctrl+Shift+E to return to the WordPress dashboard.

Version Notes

Divi 5 Only

This page documents Divi 5 behavior exclusively.

Troubleshooting

Counter Not Animating

If the circle counter displays the final value without animating:

• The animation triggers when the module scrolls into the viewport. If the module is visible on page load without scrolling, the animation may have already completed before you noticed it.
• Check that JavaScript is not being blocked by a content security policy or script-blocking plugin.
• Lazy-loading conflicts with certain caching or optimization plugins can prevent the animation trigger. Try disabling lazy-load optimizations temporarily to test.

Circle Not Visible

If the module area appears but the circular progress bar is missing:

• Verify that the circle color and the background color are not identical. If both are the same, the progress arc will be invisible.
• Check the Number field in the Content tab — if set to 0, no progress arc will render.
• Inspect the module with browser DevTools to confirm the canvas or SVG element is present and has appropriate dimensions.

Matching Circle Sizes Across Columns

Circle counters automatically scale to fit their column width. If circles in different columns appear at different sizes, ensure all columns in the row have equal widths. Alternatively, set a fixed max-width on the .et_pb_circle_counter class via custom CSS to enforce consistent sizing regardless of column width.
