Bar Counter

The Bar Counters module displays animated horizontal progress bars that fill to a specified percentage value.

Quick Reference

What it does: Renders animated horizontal bars that fill from zero to a target percentage when scrolled into view. When to use it: Skills charts, project completion trackers, survey results, fundraising progress Key settings: Individual bar Title, Percent (0-100), Background Color, Elements toggle, Bar styling Block identifier: divi/bar-counter ET Docs: Official documentation

When to Use This Module

• You need to visualize percentage-based data as horizontal progress bars
• Skills or proficiency displays on portfolio and team pages
• Metrics that benefit from an animated fill effect on scroll

When NOT to Use This Module

• You need a circular/radial progress display → use Circle Counter
• You need an animated number counting up to a value → use Number Counter
• You need a countdown to a date/time → use Countdown Timer

Overview

The Bar Counters module renders one or more labeled horizontal bars that animate from zero to a target percentage when they scroll into view. Each bar consists of a title, a filled portion representing the percentage, and a numeric label showing the value. The fill animation triggers automatically via lazy loading, making the bars visually engaging as visitors scroll down the page.

This module is designed for presenting data in percentage form. It works well for skills proficiency charts, project completion trackers, survey results, fundraising progress, or any metric that can be expressed as a proportion of 100. You can add as many individual bars as needed within a single module instance.

Each bar is an individual child item with its own title and percentage, similar to how the Accordion module contains individual accordion items. The parent module controls shared styling, while each bar can be configured independently for its content.

For additional reference, see the official Elegant Themes documentation.

View A Live Demo Of This Module

The Bar Counters module showing multiple animated progress bars with percentage labels.

Use Cases

1. Skills or Expertise Chart — Display proficiency levels for different technologies, languages, or competencies on a team page or personal portfolio.
2. Project Completion Tracker — Show the progress of ongoing projects, campaigns, or milestones with bars that visually communicate how far along each effort is.
3. Survey or Poll Results — Present poll outcomes or survey data in a clean, visual format that is easier to scan than raw numbers or tables.

How to Add the Bar Counters Module

1. Open the Visual Builder on the page you want to edit.
2. Click the gray + icon to add a new module to a row.
3. Search for "Bar Counters" in the module picker or locate it in the Content Elements category, then click to insert it.

Settings & Options

The Bar Counters module settings are organized across three tabs: Content, Design, and Advanced.

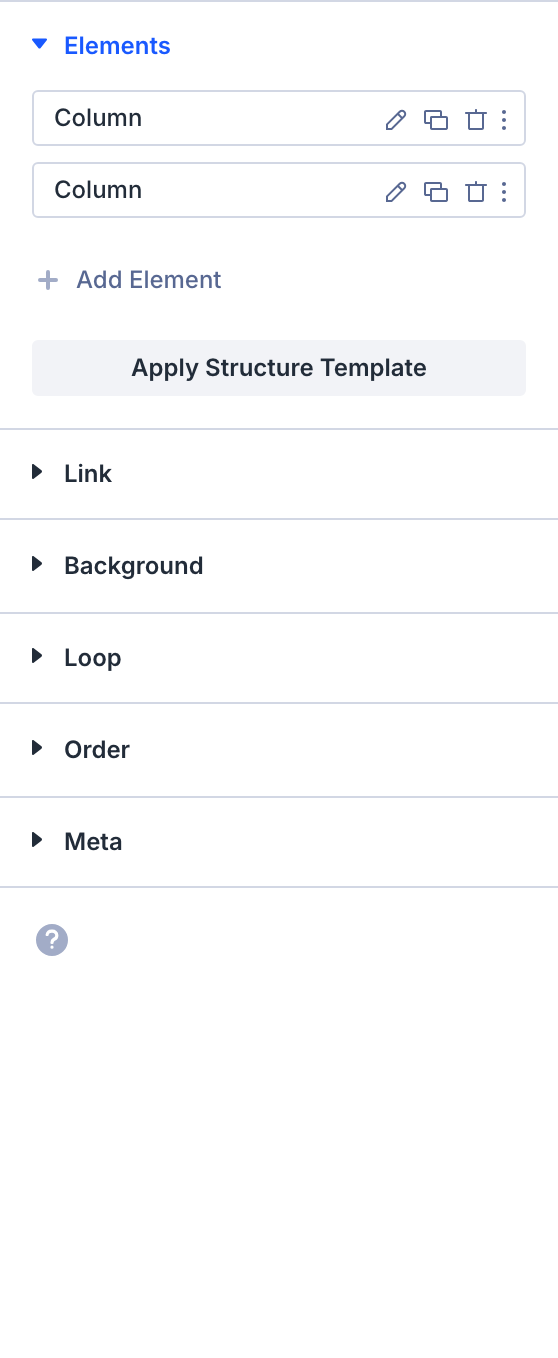

Content Tab

The Content tab controls individual bar items, visual elements, link behavior, background, and metadata.

Setting	Type	Description
Add, Edit, and Remove	item list	Manage individual bar counter items. Each item has its own title and percentage value. Click + to add a bar, the pencil icon to edit, the trash icon to delete, and drag to reorder.
Elements	toggles	Control which visual elements are displayed, such as the percentage text label on each bar.
Link	URL	Optionally link the entire module to a URL so clicking navigates to another page or resource.
Background	background controls	Apply a background color, gradient, image, or video behind the entire Bar Counters module container.
Loop	toggle	When enabled, the module can be repeated in loop-based layouts such as post type archives or dynamic content queries.
Order	select	Control the display order when the module is used inside a loop or dynamic layout context.
Meta	admin label	Set an internal admin label to identify this module in the Visual Builder's layer panel and search.

Individual Bar Item Settings

Each bar within the module has its own configurable settings:

Setting	Type	Description
Title	text	The label displayed on the bar, typically describing the skill, metric, or category.
Percent	number (0-100)	The target fill value for the bar. The bar animates from 0 to this percentage when it enters the viewport.
Background Color	color picker	Set the fill color for this individual bar, allowing each bar to have a distinct color.

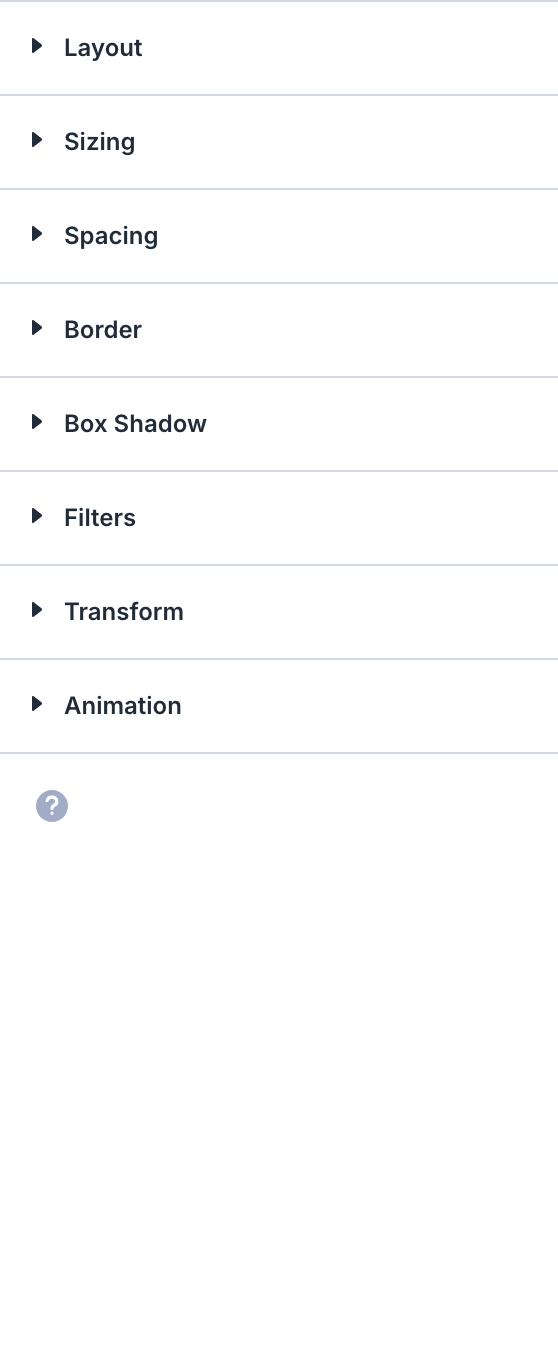

Design Tab

The Design tab controls the visual appearance of the bars, text, and overall module layout.

Module-specific settings:

Setting	Type	Description
Layout	layout options	Control the overall arrangement and orientation of the bar elements within the module.
Bar	bar styling	Style the bar elements themselves, including the bar fill color, unfilled/track color, height, and border radius of the bars.

Shared design options — see Options Groups for detailed documentation:

Options Group	Description
Text	Font, weight, alignment, color, line height, text shadow
Title Text	Font, size, color, letter spacing for bar title labels
Percentage Text	Font, size, color, weight for numeric percentage labels
Sizing	Width, max-width, height, min-height
Spacing	Margin and padding (responsive)
Border	Width, color, style, radius
Box Shadow	Shadow effects
Filters	CSS filters (brightness, contrast, etc.)
Transform	Scale, translate, rotate, skew
Animation	Entrance animation styles

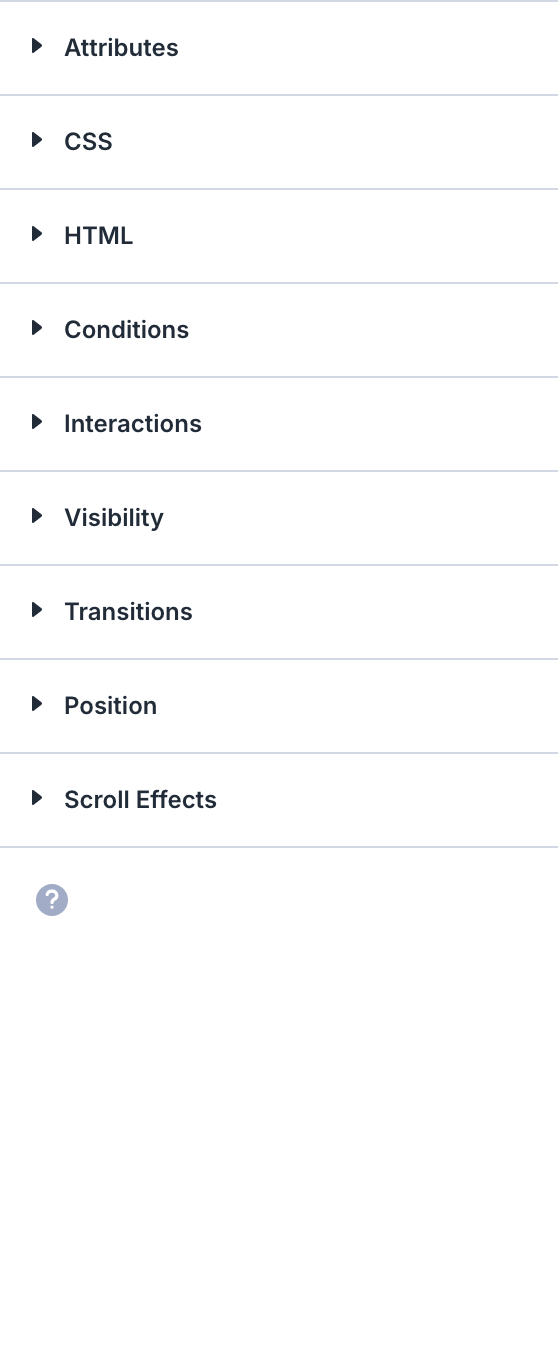

Advanced Tab

The Advanced tab provides developer-oriented controls for custom attributes, conditional display, interactions, and scroll-driven effects.

Shared advanced options — see Options Groups for detailed documentation:

Options Group	Description
Attributes	CSS ID, classes, custom HTML attributes
CSS	Custom CSS per element target
HTML	Custom HTML attributes for module wrapper
Conditions	Display rules (user role, page type, date, logic)
Interactions	Hover, click, or scroll-triggered interactions
Visibility	Device visibility toggles
Transitions	Hover transition timing
Position	CSS position and offsets
Scroll Effects	Scroll-driven animation effects

Code Examples

Custom CSS

/* Style the Bar Counters module container */
.et_pb_counters {
    margin-bottom: 30px;
}

/* Style individual bar tracks (unfilled background) */
.et_pb_counters .et_pb_counter_container {
    background-color: #e0e0e0;
    border-radius: 6px;
    height: 30px;
}

/* Style the filled portion of each bar */
.et_pb_counters .et_pb_counter_amount {
    border-radius: 6px;
    font-weight: 700;
}

/* Style bar title labels */
.et_pb_counters .et_pb_counter_title {
    font-size: 16px;
    font-weight: 600;
    margin-bottom: 6px;
}

/* Add spacing between individual bars */
.et_pb_counters .et_pb_counter_container + .et_pb_counter_container {
    margin-top: 15px;
}

/* Responsive adjustments */
@media (max-width: 980px) {
    .et_pb_counters .et_pb_counter_container {
        height: 24px;
    }
    .et_pb_counters .et_pb_counter_title {
        font-size: 14px;
    }
}

PHP Hooks

/* Filter the Bar Counters module output */
add_filter('et_module_shortcode_output', function($output, $render_slug) {
    if ('et_pb_counters' !== $render_slug) {
        return $output;
    }
    // Example: wrap the module in a custom container
    $output = '<div class="custom-counters-wrapper">' . $output . '</div>';
    return $output;
}, 10, 2);

Common Patterns

1. Skills Section on an About Page — Add a Bar Counters module with entries for each skill or technology. Assign distinct colors to each bar and set percentages that reflect proficiency levels. Pair with a heading or blurb module that introduces the team or individual.

2. Fundraising or Goal Tracker — Use a single bar set to the current fundraising percentage. Style the fill color in a brand accent color and increase the bar height for visual prominence. Update the percentage value as the campaign progresses.

3. Comparison Chart — Display competing metrics side by side using two Bar Counters modules in adjacent columns. For example, show "Before" percentages on the left and "After" on the right to illustrate improvement or growth.

AI Interaction Notes

Create vs. Modify

Modifying existing module content via REST API (wp.apiFetch PATCH) updates title, body text, and settings attributes. Creating new modules via REST API produces content that renders on the front end but may not appear in the Visual Builder layer view. Use browser automation for reliable module creation. See REST API Content Playbook.

Block identifier: divi/bar-counters — Needs verification on current build

Operation	Method	Status	Notes
Read content	Parse post_content block JSON	Observed	Use brace-depth parser — see Content Encoding
Modify existing	wp.apiFetch PATCH on post endpoint	Observed	Update block attributes in post_content
Create new	Browser automation (Playwright)	Observed	REST creation may break VB visibility
Batch modify	Sequential REST requests	Needs Testing	See REST API Content Playbook

Key content attributes — JSON paths need verification:

Attribute	JSON Path	Notes
Title	attrs.title	Label displayed on the bar
Percent	attrs.percent	Target fill value (0-100)

Module Selection Guidance

For horizontal progress bars use Bar Counter; for circular displays use Circle Counter; for animated numbers use Number Counter.

Saving Your Work

After configuring the Bar Counters module:

• Save changes — Click the purple Save button at the bottom of the Visual Builder, or press Ctrl+S (Windows) / Cmd+S (Mac).
• Exit the builder — Click the X button or use Ctrl+Shift+E to return to the WordPress dashboard.

Version Notes

Divi 5 Only

This page documents Divi 5 behavior exclusively.

Troubleshooting

Bars Not Animating

If the bars appear at their full percentage without the fill animation:

• Ensure the module is below the fold so the scroll-triggered animation can fire when it enters the viewport
• Check that no JavaScript errors on the page are preventing the intersection observer from running
• Verify that a caching plugin is not serving a static snapshot of the page with pre-filled bars

Percentage Labels Missing

If the numeric percentage text is not visible on the bars:

• Open the Content tab and check the Elements toggle to confirm percentage display is enabled
• Verify that the Design tab Percentage Text color is not set to the same color as the bar fill, making it invisible
• Check that the bar height is tall enough to contain the text at the configured font size

Bars All Look the Same Color

By default, all bars may share a single fill color from the parent module's Design settings. To give each bar a unique color, open each individual bar item's settings and set its Background Color to a distinct value.

Related

• Circle Counter — Animated circular counters for displaying percentages in a radial format
• Number Counter — Animated number counters that count up to a target value on scroll
