Audio

The Audio module embeds an audio player with optional album artwork, title, and artist metadata.

Quick Reference

What it does: Embeds a styled HTML5 audio player with cover image, title, and artist metadata. When to use it: Podcast episodes, music portfolios, guided audio content, voice recordings Key settings: Audio file source, Image (cover art), Text (title/artist), Link, Background Block identifier: divi/audio ET Docs: Official documentation

When to Use This Module

• You need an inline audio player with playback controls on a page
• Podcast or music pages where cover art and metadata should display alongside the player
• Audio lessons, meditations, or recordings paired with written content

When NOT to Use This Module

• You need to embed video content → use Video
• You need a playlist of multiple video files → use Video Slider
• You need background audio that plays automatically → use a Code module with custom JavaScript

Overview

The Audio module provides a fully styled, browser-native audio player that you can drop into any page layout. It wraps the standard HTML5 <audio> element with Divi's design controls, letting you present music tracks, podcast episodes, voice recordings, or any other audio file with a polished, on-brand appearance.

Beyond basic playback, the module supports an accompanying cover image, making it well suited for album art, podcast artwork, or episode thumbnails. You can also display a title and artist/caption alongside the player, giving visitors the context they need without leaving the page.

Because the module relies on the browser's native audio capabilities, it supports common formats such as MP3, OGG, and WAV. Upload files to the WordPress Media Library and select them from within the module settings, or paste an external URL to a hosted audio file.

For additional reference, see the official Elegant Themes documentation.

View A Live Demo Of This Module

The Audio module displaying a track with cover artwork and playback controls.

Use Cases

1. Podcast Episode Player — Embed individual episodes directly on a show notes page so visitors can listen without navigating to a third-party platform.
2. Music Portfolio — Showcase original compositions or production samples with album artwork, giving prospective clients or fans an inline listening experience.
3. Guided Meditation or Course Audio — Offer audio lessons, meditations, or training recordings alongside written content for a multimedia learning experience.

How to Add the Audio Module

1. Open the Visual Builder on the page you want to edit.
2. Click the gray + icon to add a new module to a row.
3. Search for "Audio" in the module picker or locate it in the Media category, then click to insert it.

Settings & Options

The Audio module settings are organized across three tabs: Content, Design, and Advanced.

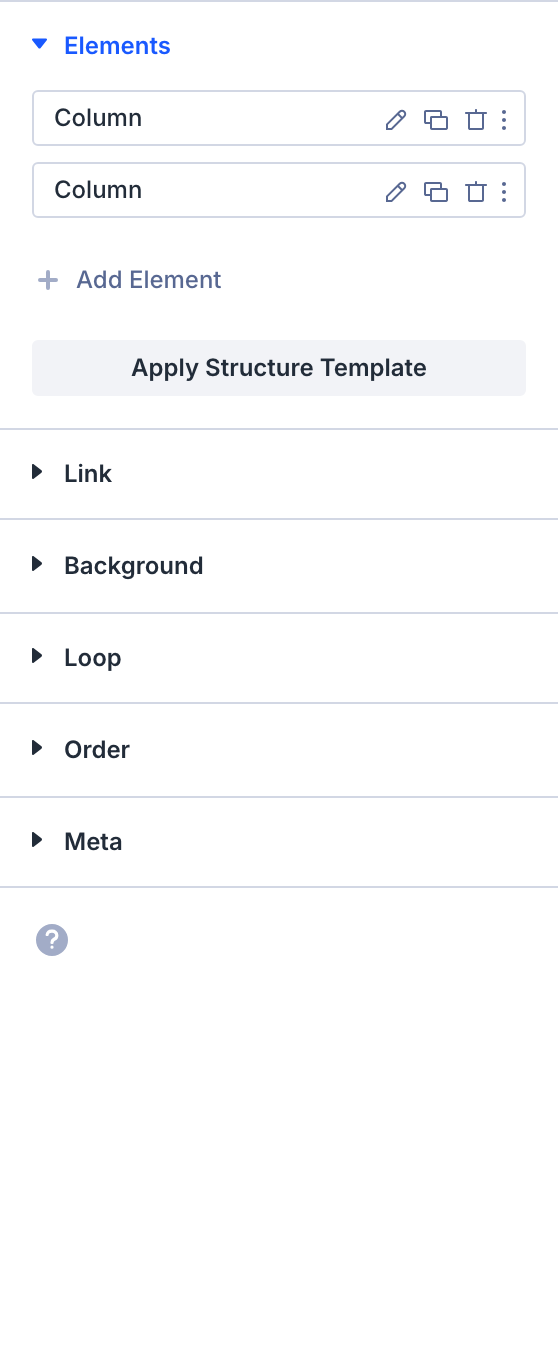

Content Tab

The Content tab controls the audio source, accompanying text and image, link behavior, background, and metadata.

Setting	Type	Description
Text	text fields	Enter the track title and artist or description that display above the audio player.
Audio	file upload / URL	Select or upload an audio file (MP3, OGG, WAV) from the Media Library, or paste an external audio URL. This is the file the player will stream.
Image	image upload	Upload or select a cover image displayed alongside the player. Commonly used for album art, podcast artwork, or a branded thumbnail.
Link	URL	Optionally wrap the module in a link so clicking navigates to another page or resource.
Background	background controls	Apply a background color, gradient, image, or video behind the entire Audio module container.
Loop	toggle	When enabled, the module output can be repeated in loop-based layouts such as post type archives or custom queries.
Order	select	Control the display order when the module is used inside a loop or dynamic layout context.
Meta	admin label	Set an internal admin label to identify this module in the Visual Builder's layer panel and search.

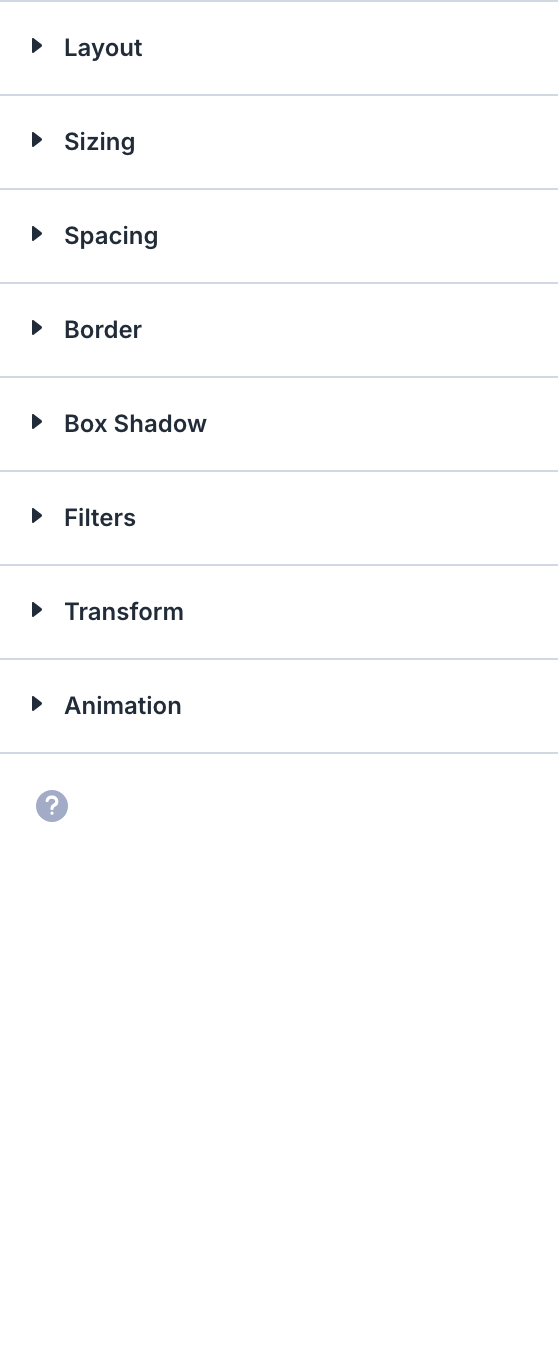

Design Tab

The Design tab controls all visual styling for the audio player and its surrounding elements.

Module-specific settings:

Setting	Type	Description
Image	image styling	Adjust the cover image dimensions, alignment, and how it is displayed relative to the player.
Caption Text	text styling	Style the artist or caption text below the title with its own font, size, color, and spacing values.

Shared design options — see Options Groups for detailed documentation:

Options Group	Description
Text	Font, weight, alignment, color, line height, text shadow
Title Text	Font, size, color, letter spacing for the track title
Sizing	Width, max-width, height, min-height
Spacing	Margin and padding (responsive)
Border	Width, color, style, radius
Box Shadow	Shadow effects
Filters	CSS filters (brightness, contrast, etc.)
Transform	Scale, translate, rotate, skew
Animation	Entrance animation styles

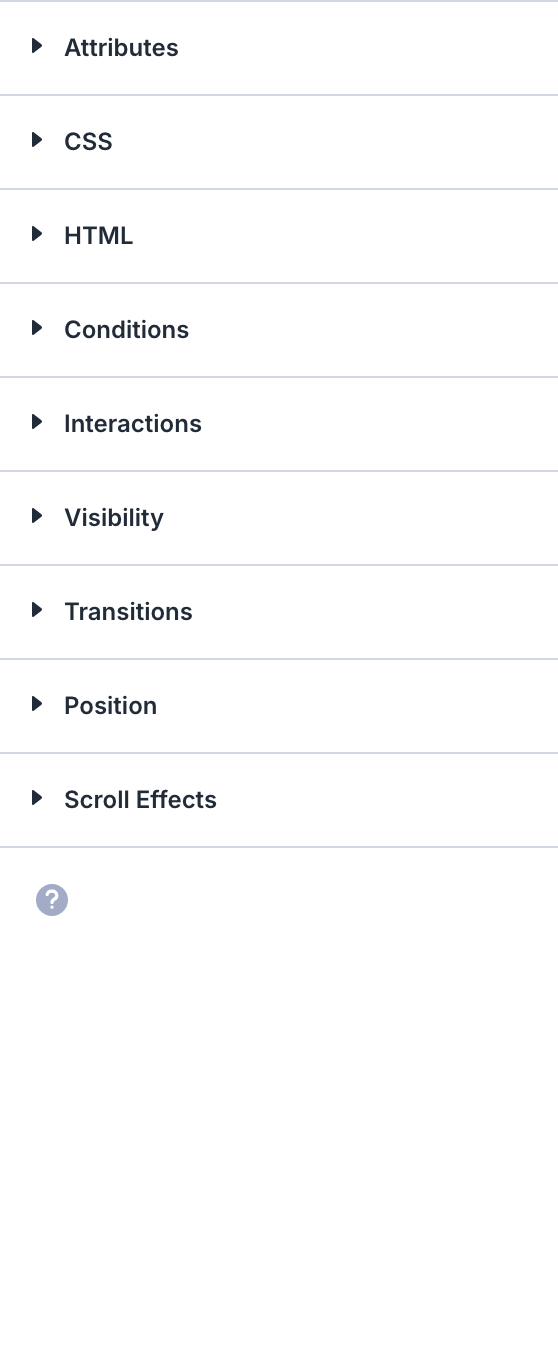

Advanced Tab

The Advanced tab provides developer-oriented controls for custom attributes, conditional display, interactions, and scroll-driven effects.

Shared advanced options — see Options Groups for detailed documentation:

Options Group	Description
Attributes	CSS ID, classes, custom HTML attributes
CSS	Custom CSS per element target
HTML	Custom HTML attributes for module wrapper
Conditions	Display rules (user role, page type, date, logic)
Interactions	Hover, click, or scroll-triggered interactions
Visibility	Device visibility toggles
Transitions	Hover transition timing
Position	CSS position and offsets
Scroll Effects	Scroll-driven animation effects

Code Examples

Custom CSS

/* Style the Audio module container */
.et_pb_audio_module {
    border-radius: 12px;
    overflow: hidden;
    margin-bottom: 30px;
}

/* Style the cover image area */
.et_pb_audio_module .et_pb_audio_cover_art {
    max-width: 200px;
    border-radius: 8px;
}

/* Style the track title */
.et_pb_audio_module h2 {
    font-size: 22px;
    font-weight: 700;
    margin-bottom: 4px;
}

/* Customize the playback controls bar */
.et_pb_audio_module .mejs-container {
    background: transparent;
}

.et_pb_audio_module .mejs-controls .mejs-time-rail .mejs-time-total {
    border-radius: 4px;
}

/* Responsive adjustments */
@media (max-width: 980px) {
    .et_pb_audio_module .et_pb_audio_cover_art {
        max-width: 150px;
    }
    .et_pb_audio_module h2 {
        font-size: 18px;
    }
}

PHP Hooks

/* Filter the Audio module output */
add_filter('et_module_shortcode_output', function($output, $render_slug) {
    if ('et_pb_audio' !== $render_slug) {
        return $output;
    }
    // Example: add a download link after the player
    $output .= '<a href="#" class="audio-download-link">Download Episode</a>';
    return $output;
}, 10, 2);

Common Patterns

1. Podcast Show Notes Layout — Place the Audio module at the top of a blog post, followed by a text module with episode show notes and timestamps. Set a branded cover image and use the title field for the episode name.

2. Music Portfolio Grid — Arrange multiple Audio modules in a multi-column row to create a grid of playable tracks. Give each a unique cover image and keep titles short so the layout stays compact and scannable.

3. Background Ambience Player — Use a single Audio module in a sticky footer or sidebar section to provide ambient background audio. Style it with a minimal design, reduced spacing, and subtle colors so it does not compete with primary content.

AI Interaction Notes

Create vs. Modify

Modifying existing module content via REST API (wp.apiFetch PATCH) updates title, body text, and settings attributes. Creating new modules via REST API produces content that renders on the front end but may not appear in the Visual Builder layer view. Use browser automation for reliable module creation. See REST API Content Playbook.

Block identifier: divi/audio — Needs verification on current build

Operation	Method	Status	Notes
Read content	Parse post_content block JSON	Observed	Use brace-depth parser — see Content Encoding
Modify existing	wp.apiFetch PATCH on post endpoint	Observed	Update block attributes in post_content
Create new	Browser automation (Playwright)	Observed	REST creation may break VB visibility
Batch modify	Sequential REST requests	Needs Testing	See REST API Content Playbook

Key content attributes — JSON paths need verification:

Attribute	JSON Path	Notes
Audio URL	attrs.audio	Source URL of the audio file
Title	attrs.title	Track or episode title
Artist	attrs.artist	Artist or creator name
Image URL	attrs.image_url	Cover artwork image URL

Module Selection Guidance

For audio playback use Audio; for video use Video; for background music consider custom code.

Saving Your Work

After configuring the Audio module:

• Save changes — Click the purple Save button at the bottom of the Visual Builder, or press Ctrl+S (Windows) / Cmd+S (Mac).
• Exit the builder — Click the X button or use Ctrl+Shift+E to return to the WordPress dashboard.

Version Notes

Divi 5 Only

This page documents Divi 5 behavior exclusively.

Troubleshooting

Audio File Not Playing

If the player appears but no audio plays, verify that:

• The audio file URL is accessible and not behind authentication
• The file format is supported by browsers (MP3 is the most widely compatible)
• Your hosting server allows direct file access and has not blocked the MIME type

Cover Image Not Displaying

If the uploaded image does not appear beside the player:

• Confirm the image was uploaded to the Media Library and the URL is valid
• Check that Design tab image sizing settings are not collapsing the image to zero dimensions
• Verify no custom CSS is hiding the .et_pb_audio_cover_art element

Player Looks Unstyled or Broken

The Audio module relies on the MediaElement.js library bundled with WordPress. If the player appears as a plain HTML5 control, check that no optimization plugin is deferring or combining the mediaelement scripts incorrectly. Exclude wp-mediaelement from script optimization to restore styling.

Related

• Video — Embed video content with a similar media-focused layout
• Video Slider — Present multiple videos in a sliding carousel format
